PHD-101
ATSC / QAM (HD) Tuner Receiver Box
from PrimeDTV |
 |
| |
Front Panel
Enlarge
|
Enlarge |
|
Rear Side
Enlarge |
|
Model: PHD-101
Price: $159.95 |
|
|
|
|
| |
Product Description: |
|
|
|
| |
|
|
|
|
| |
PHD-101 is very high performance and low cost high-end
HDTV Decoder Box. This unit can receive ATSC over-the-air HDTV digital
broadcast signals and digital Cable clear QAM signals (64 and 256 QAM
signals) from an external antenna or cable RF source.
The unit is a perfect match for consumer's EDTV or HDTV monitors, or
converts HDTV signals to analog signals for conventional TV displaying
from S-Video and Composite outputs . The unit features Component
(YPbPr HD/SD), RGB, Digital D-DVI, S-Video and Composite outputs. Audio
outputs include Dolby® Digital Optical and Stereo L/R.

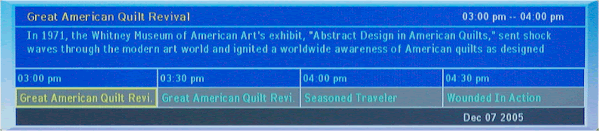

PHD-101 also provides real-time Electronic Programming
Guide (EPG) and functions like Channel List to instant channel tuning,
one button for the current channel detail information and many more... |
| |
|
|
|
|
| |
Product Features: |
|
|
[
Top Page] |
| |
|
|
|
|
| |
Receive and decode all over-the-air (ATSC) HDTV/SDTV formats |
| |
Receive and decode Digital Cable (Clear QAM) HDTV/SDTV formats |
| |
HD
Component (Y-Pb-Pr), RGB, Composite and S-Video Outputs, and DVI HDTV
output |
| |
Rear-panel switch for selecting output resolution (1080i / 720p / 480p /
480i) |
| |
V-CHIP & Closed Captioning |
| |
12-hour long Electronic Programming Guide (EPG) |
 |
| |
for each received channel |
| |

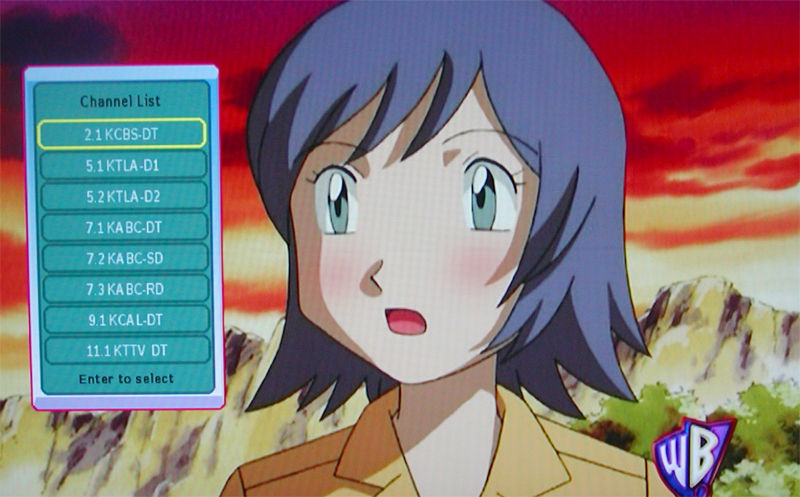

Channel
list and Channel Enable / Disable features |
 |
| |
Video Output format selectable for 16:9 and 4:3 |
|
aspect ratio |
| |
Letterbox, and Full output modes for viewing 16:9 |
|
programs on 4:3 TV and Monitors from SD signal |
|
Powered by ATI XILLEON 300 MHz MIPS® Processor |
 |
|
with powerful display engine |
|
|
| |
|
| |
Product Details: |
|
|
[
Top Page] |
| |
|
|
|
|
| |
Product Dimensions: 14.0 x 10.0 x 2.0 inches |
| |
Shipping Weight: about 8 pounds. |
| |
Shipping: Worldwide. |
| |
Warranty Terms: Parts - 1 year, Labor - 90 days |
| |
Suggested Accessories:
DVI Cable |
| |
l
Suggested Accessories:
DVI to HDMI Cable |
| |
l
Suggested Accessories:
Toslink Optical Cable |
| |
l
Suggested Accessories:
High-end Component
(Y-Pb-Pr) Cable |
| |
|
|
|
|
| |
Product Manuals: |
|
|
[
Top Page] |
| |
|
|
|
|
| |
Important Installation Guideline
 |
| |
PHD-101 User Manual
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
 |
PHD-101 |
|
PHD-101 ATSC / QAM (HD) Tuner Receiver
Box |
|
$159.95 |
|
|
|
|
Note:
* Product is out of stock. |
|
|
|
|
|
|
|
| |
|
|
|
|
