See product
comparison tables:
-
|
| |
|
|
| |
Product Key Features and
Applications: |
|
| |
|
|
| |
 |
Best Companion Set Top Box
for HD Projectors, Large screen HDTVs, Conference room and Home Theater
TVs! |
| |
|
High-end, low cost HDMI A/V
Switcher and Full 1080p Scaler Box for every video applications and best
possible viewing experience. |
| |
|
Beautify your exiting
satellite or cable box from PHD-8VX2 video enhancement technology. |
| |
|
All-in-one HDTV receiver and
media hub unit perfectly used in many remote locations like on the boat, on the
road, camping or others... |
| |
|
Excellent 2nd HD source
(broadcast or cable) receiver for your multi rooms
high-def entertainment system. |
| |
|
Exceptional 1080p scaling &
enhancement on all inputs. Cinematical Visual Quality! |
| |
|
Custom Aspect Ratio
adjustment. Give users full power on video over-scan control and
re-cover 100% HD picture content on your screen. |
| |
|
Dual channel-scan database.
Keep both OTA (ATSC) and cable (QAM/NTSC) channel information without
re-scanning. |
| |
|
Individual picture
(brightness, contrast, sharpness and etc.) adjustments on each input.
Also include pre-set picture modes. |
| |
|
Cinema Mode 24 fps (3:2 Pulldown). PHD-8VX2 handles 24p mode from HDMI
inputs, a handy feature for watching progressive-scan movie programs in
their native 24-frame format.. |
| |
|
Virtual surrounding sound
and audio adjustments. |
| |
|
Accept hi-resolution PC
video from both VGA/audio port and HDMI ports. Excellent viewing
experience to see Youtube and Hulu videos on big screen TV. |
| |
|
MP3 audio and JPEG image
playback via USB port. |
| |
|
Photo Frame capability and
slideshow with optional background MP3 music playing. |
| |
|
Input labeling enables you
to name the individual inputs to denote usage. |
| |
|
RS232 port communications to
control PHD-8VX2 remotely. |
| |
|
New generation RF tuner
reception. In some areas, PHD-8VX2 pick up more OTA (ATSC) and QAM/NTSC
channels! |
| |
|
|
| |
Product Description: |
|
|
|
[
Top Page] |
| |
|
|
|
|
|
| |
PHD-8VX2 is a truly innovated, unique high-end top level
HD set top box available today! When in most cases at home, office,
campus, stores and other places, connecting many different AV systems to
HDTV may become a stressful work. In the end, video showing on your TV
screen may not be good quality or fitting correctly into the screen. To
enjoy consistent high-end video quality (up to 1080p) on each devices
you connected to and ease the frustrations, PHD-8VX2 is your ultimate
solution!! PHD-8VX2 can take every input (ATSC/QAM/NTSC, HDMI, DVI,
YPbPr, VGA, Composite and S-video), then improve beautifully.
Furthermore, using internal powerful features, users
have freedom and full control to adjust picture colors on each input,
set up surround sound as well as refine-tune the video picture size to
fit 100% in your TV screen.
Using the latest digital technology, PHD-8VX2 provides
cinematical visual quality and gives video viewing more depth. And new
generation advanced RF tuning, PHD-8VX2 ensures to receive better and
steady channels ever before!
Purchase PHD-8VX2 today! You will enjoy and discover all
the benefits to make your HD entertainment system further advance and
more ... |
| |
|
|
|
|
|
| |
Product Inputs and Outputs
(I/Os): |
|
|
|
[
Top Page] |
| |
|
|
|
|
|
| |
 |
| |
|
| |
|
|
1x HDMI:
1080p/1080i/720p/480p
1x Composite Video: 480i
1x Stereo Audio: L/R
1x Digital Audio Optical Output. |
|
3x
HDMI
1x RF (ATSC/QAM/NTSC)
1x Composite Video (CVBS) /Audio
1x S-Video /Audio
1x VGA (RGB) / Audio
1x Component (Y-Pb-Pr) /Audio
1x DVI (shared with HDMI-3) / Audio
1x USB
1x RS232 |
|
| |
|
| |
Product Technical
Specifications: |
|
|
|
[
Top Page] |
| |
|
|
|
|
|
| |
|
MPEG Processor Chip |
ATI
432-MHz MIPS
CPU |
|
TV System |
ATSC/QAM/NTSC
Video: MPEG-2 MP@HL compliant video
decoder
RF Video Type: 480i, 480p, 720p, 1080i
Audio: Dolby Digital, PCM
Dual-Channel Scan
EPG(Electronic Program Guide) with ATSC
PSIP(Program and Service Information
Protocol)
Closed Caption: EIA-608A/EIA-708B
Supported
V-Chip and MPAA; Parental Guide Rating
Support |
|
Video Aspect Ratio |
Normal/Full
Screen/Panoramic/Zoom1/Zoom2/Direct/Custom |
|
Video Enhancement |
*DNC3 and zone
color management
*1080i motion adaptive de-interlacing
with
3:2/2:2 pull-down
*3D Motion
Adaptive Gaussian NR
*3D color
management system provides a superior
viewing experience using edge and color
enhancements.
*3D comb
filter with per pixel adaptive motion detection delivers
excellent Y/C separation
*3D graphics
provide a rich, product-differentiating user interface, viewable
at 10 foot distance |
|
Audio Enhancement |
Virtual surround sound |
|
Video Scaler |
Can up scale all video format to 1080p
output (HDMI) or down convert to 480i
output (CVBS) |
|
Language |
English, French, Spanish |
|
Power |
Power supply: AC 120V, 60Hz
Consumption: 25 Watts
Standby mode: 1 Watt |
|
Package Contents |
PHD-8VX2 unit, Infrared
(IR) remote control with battery, User
operation manual and HDMI cable. |
|
| |
|
| |
Product Details: |
|
|
|
[
Top Page] |
| |
|
|
|
|
|
| |
|
| |
|
|
|
|
|
| |
Product Manuals: |
|
|
|
[
Top Page] |
| |
|
|
|
|
|
| |
PHD-8VX2 User Manual
|
| |
PHD-8VX2 Remote Control IR Codes:
|
| |
PHD-8VX2 RS232 Com port commands -
,
Connection Diagram -
|
| |
|
|
|
|
|
| |
Firmware Download: |
|
|
|
[
Top Page] |
| |
|
|
|
|
|
| |
Download Instructions - TBD |
| |
|
|
 |
firmware
- TBD |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 |

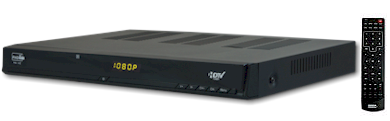

PHD-8VX2 |
|
PHD-8VX2
Full HD 1080p Multi-HDMI A/V Switcher
Digital HDTV Tuner Receiver Media Box |
|
$129.88
|
|
| |
Shipping:
In stock |
|
|
| |
|
|
| |
|
